I hold the mirror at the preferred position. Let your wife hold the mirror, and sit in the car to check that you see good in the rear view mirror, and mark its position with a pen..
	Then its time to drill a 9 mm hole.
On the inside of the door there was a bit to much tin, to be able to mount the mirror.
	So out with the hole saw
After drilling the hole there still was some metal left.
	It was solved with a little hot wrenching.
After that i could mount the mirror. Its mounted from the inside wit a nut.
	Looking great, Now its only the rest left to do :-)

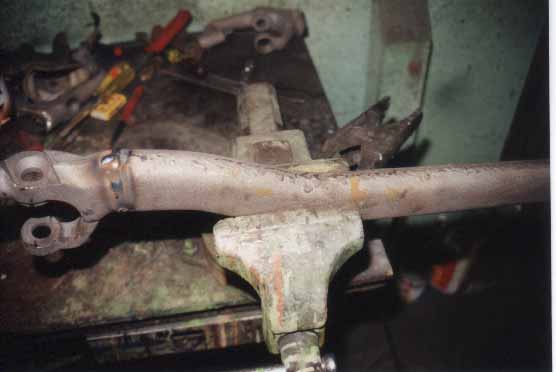

One other thing i also had to do was to shorten the P- rod. This because the dropped front axle is 2" narrower then the original one. I used a tap to make new threads.
	After that i cut a new slot with my grinder.
Ready to mount, on the car again ;-)

Engine:
Type..........Ford flathead 8 BA
Induction....Fenton Manifold 3 Stromberg 81
Camshaft....8BA Truck
Ignition........Original Nos
Exhaust....... Home Built headers.
Heads.......... Original today But I'm looking for some aluminum heads Not Edelbrock or Offenhauser, Got any ??

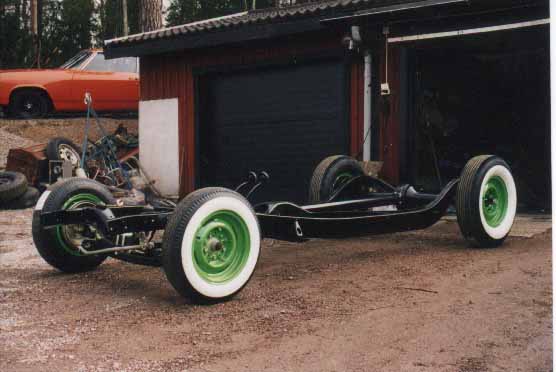

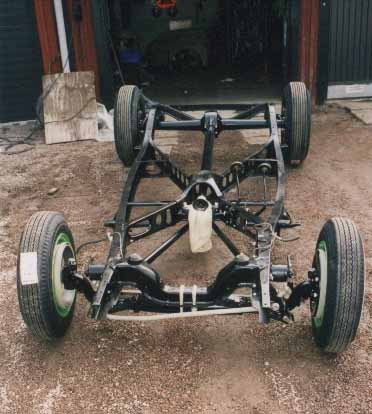

Chassis:

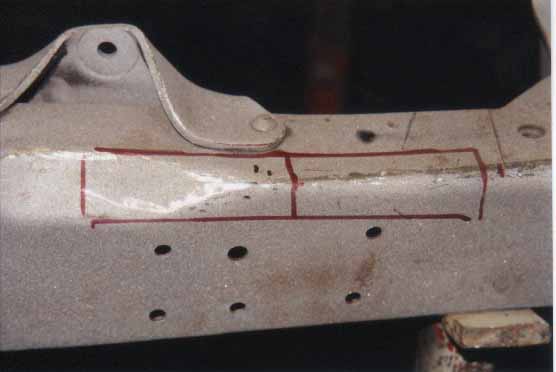

Frame..................Original C,ed in rear.
Front suspension..Super bell tube axle 4-inch drop axle Posie spring split wishbone.

Rear suspension...Original with With long shackles "Special "aircraft" shock kit tube type this was an old after market kit that i found at a swap meet.

Tires, Front/Rear... Firestone 5,60 by 15 8,20 by 15 Whitewalls.
Wheels.................. Volvo 810 15" rims They have the old Ford bolt pattern.

Drive train:

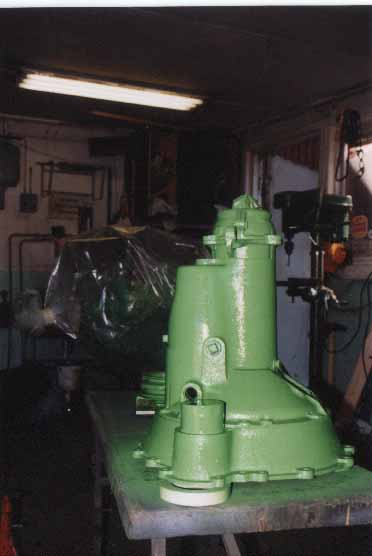

Transmission........3 speed original gear box.
Rearend...............Original 46 Ford 3,54

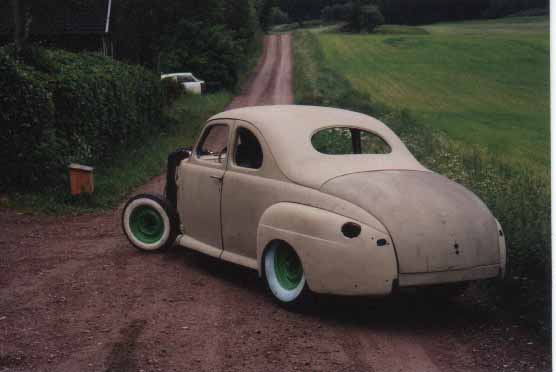

Body:
Model..................Business Coupe
Modifications........Removed Running boards, mild custom.

Paint:
Not yet but i think about flat black with flames, suggestions anyone?
